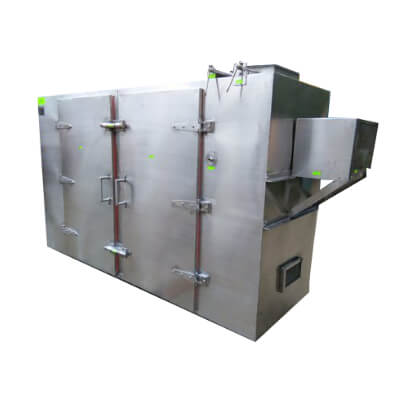

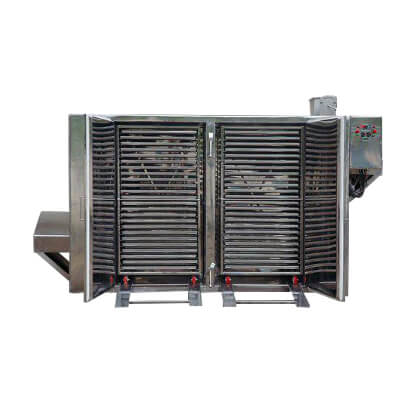

Tray Dryer

The Heat Transfer (dryer chamber) is provided with electrical heaters or steam for circulation of heat and solid or wet materials are placed in the Tray for processing. A special blower arrangement is provided inside the chamber to circulate hot air of required temperature as per product requirement.

The control panel is installed at the outside of dryer and is equipped with numerous gauges for observation of air flow, temperature and other related parameters with timers.

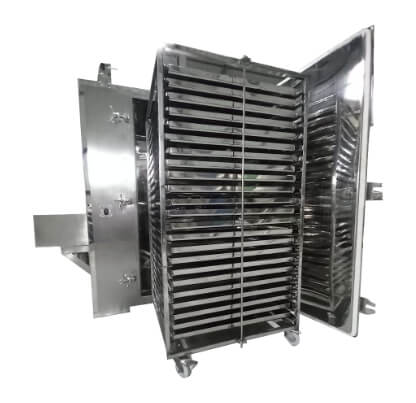

The doors are provided with gaskets to avoid air leakages from the front side of the door. Stainless steel trays are placed inside the chamber.

cGMP model dryers are designed to dry specific products.

The Tray Dryers are normally available with choice of heating mode

• Electrically heated
• Steam heated
• Thermic fluid heated / hot air heated

• Ranges from 12 trays to 200 trays holding capacity
• Standard tray size : 32" D x 16" W x 1.25" H
• Heating Media : Hot Air Generator / Electric Heaters / Steam Radiators / Thermic Fluid Radiators

Model	ATD-24	ATD-48	ATD-96	ATD-192
Capacity (Nos. Of Trays)	24	50	100	200
Nos. Of Trolleys	1	1	2	4
Heating Media	Thermic Fluid, Steam, Hot Air, Electricity
Nos. Of Fan	1	1	2	4
Power Supply	415 Volts 3-Phase 50 Hz

• Noiseless and minimum maintenance
• Uniform and Quick Drying
• Double walled construction
• Easy accessibility of internals for Hygienic cleaning
• Individual motor drives for each fan
• Each batch of the materials can be handled as a separate entity
• The same equipment is readily adjusted for the use in drying a wide variety of the materials
• Valuable products can be handled efficiently
• It requires low labour costs - simply load and then unload

• Pigment & dyes , Chemicals and intermediates
• Pharmaceutical , drug & Intermediates
• Food & Beverages industry
• Paint Backing Applications
• Wood / Ply wood industries
